| Emergency Stop | use If caused Abnormal |
|---|---|
| Timer 1 | Set up for Operation Time of Burner Cleaning and Air Cleaning |
| Manual Mode | Operated Air Cleaning by Manual Switch |
| Blower/th> | High Pressure Ring Blower/Differential Pressure/Burner Cleaning Suction |
| Auto Mode | Auto Air Cleaning for Timer Relay and Electronic Valve by Interlocking |
| Timer 2 | Set up for Electronic valve Operation Time |
| Inlet Temperature | Gas Burner Flame Control after identified of Inlet Temperature |
| Internal Temperature | Temporary Stop for Burner if the Target temperature is arrived at the Catalyst inside |
| Outlet Temperature | Temporary Stop for Blower if the Exhaust temperature is arrived |
| Outlet Temperature | Burner Reset - Use if Check is ON |

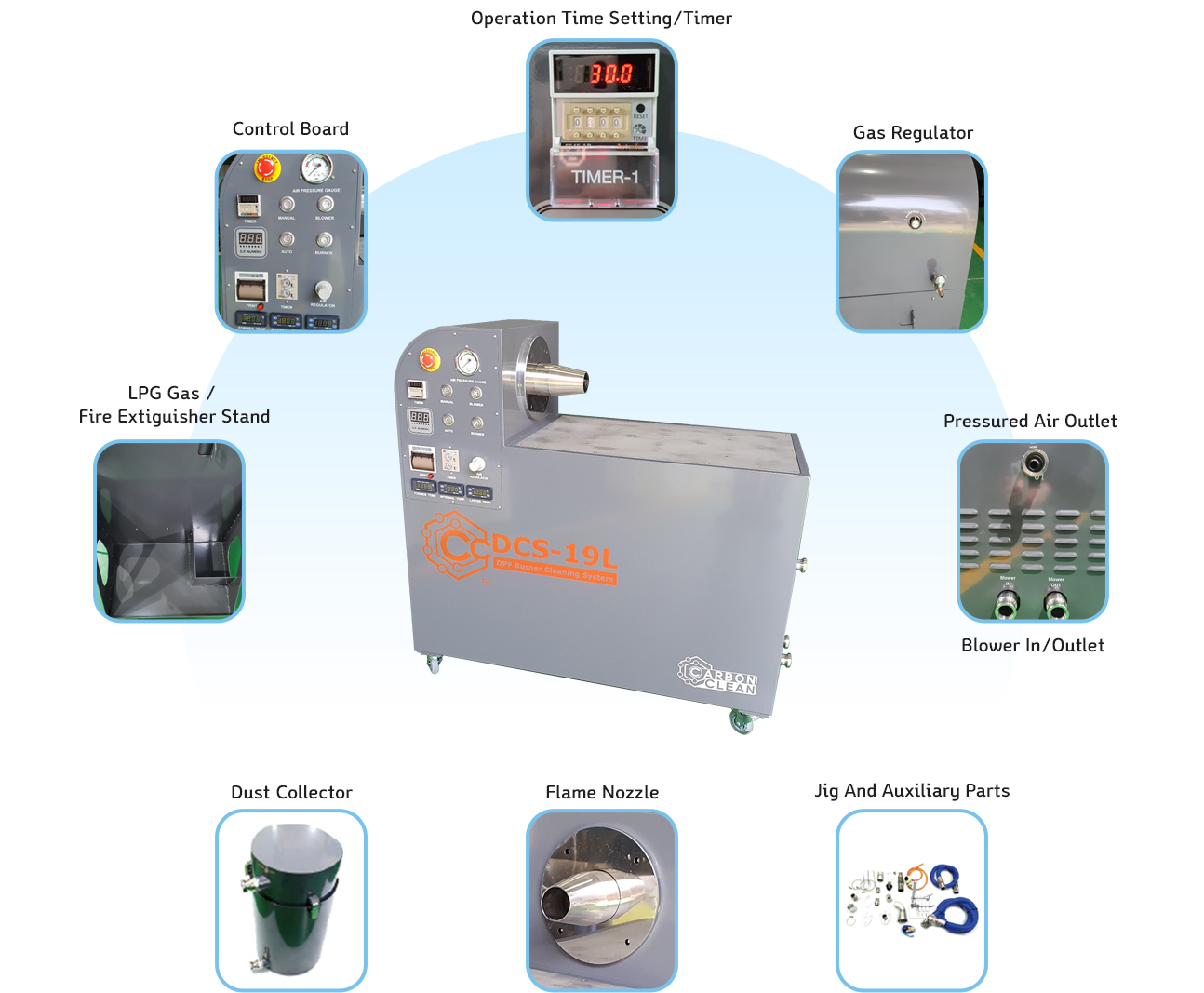

| Description | DPF Dry and Burner Cleaning System |
|---|---|
| Model No. | DCS-19L |
| Driving System | Gas : LPG Gas Air : 2 ~ 10 Bar Power : 220V/60HZ/30A |
| Operation Method | Temperature & Timer |
| Dimension | 1,450(L) X 500(W) X 1,120(H) |
| Weight | 140Kg |
